------Large LCD ,70 Test ,Model: MCL-301
6 detecting wavelengths: 450-492-510-546-578-630nm
Up to 70 test items
Large LCD. menu operation, hospital and patient information editing available
Memory for 10000 sample results
Few reagent needing, low detecting cost.
Open reagents
Specification:
Test project | ≥70 |
Wavelength | 450,492,510,546,578,630nm |
Flow cell | 32uL,quartz glass |
Liquid volume | 200-3000uL |
Resolution | 0.001Abs(display),0.0001Abs(calculation) |
Carryover | <1% |
Repeatability | <1% |
Printer | Internal thermal-sensitive printer, 58nm paper width |
Display | 240*64LCD |
Communication | RS-232 serial cable |
Power supply | 220\110VAC±15%,50\60Hz 80W |
Temperature | 15℃-30℃ wet≤90% |
Dimension | 380mm(L)*330mm(W)160mm(H) |
Weight | 7Kg |
Click here for more information !!!

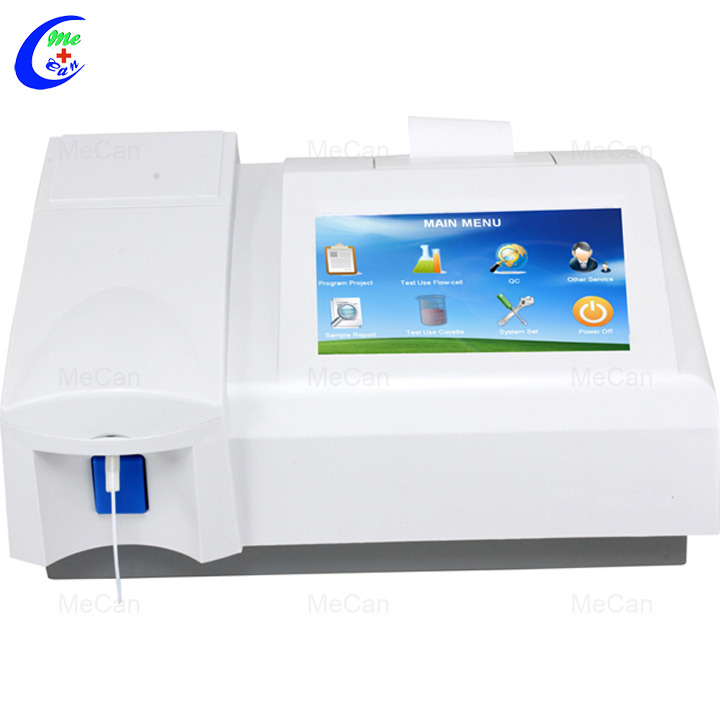

-------7 inch Color LCD , Touch screen,90 test,Model: MCL-302B
7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting
Specification
Test mode: Kinetic, End point, Two point, Absorbance
Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision: ±2 nm, width ≤ 10nm
Absorbance range: 0~4.500 Abs
Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs
Carry over: < 1%
Repeatability CV: < 1%
Incubator: 37℃, 30℃, 25℃, Precision : ±0.1℃
Sample volume: 0~3000 uL (≥500uL recommend)
Data Storage: ≥10000
Quality control curve: , SD, CV%, L-J quality control curve for every test item
Flow cell: 32 uL quartz glass, 10 mm
Lamp: 6V 10W Halogen Lamp with long life
Screen: 7 inch color LCD
CPU: ARM series high speed micro CPU
Printer: Internal thermal sensitive printer
Interface: RS-232
Work Environment: Temperature 0℃~ 40℃, Humidity: ≤80%
Power supply: 100~240VAC, 50-60Hz, 100VA
Dimension: 340(L)*270(W)*160(H)
Weight: 5 kg
Usual test list
Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function : BUN CRE UA URE CO2-CP γ-GT
Lipids: T-CHO TG HDL-C LDL-C
Cardiac function: CK CK-MB LDH
Immune proteins: IGA IGG IGM C3
Others: GLU HGB AMS
Click here for more information !!!
------ 7 inch Color LCD , Touch screen,90 test,Model: MCL-302B1
10 incubators and three timers
7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting
Specification:
Test mode: Kinetic, End point, Two point, Absorbance
Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision: ±2 nm, width ≤ 10nm
Absorbance range: 0~4.500 Abs
Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs
carry over: < 1%
Repeatability CV: < 1%
Incubator: 37℃, 30℃, 25℃, Precision : ±0.1℃
Sample volume: 0~3000 uL (≥500uL recommend)
Data Storage: ≥10000
Quality control curve: SD, CV%, L-J quality control curve for every test item
Flow cell: 32 uL quartz glass, 10 mm
Lamp: 6V 10W Halogen Lamp with long life
Screen: 7 inch color LCD
CPU: ARM series high speed micro CPU
Printer: Internal thermal sensitive printer
Interface: RS-232
Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%
Power supply: 100~240VAC,50-60Hz,100VA
Dimension: 340(L)*270(W)*160(H)
Weight: 5 kg
Usual test list:
Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function : BUN CRE UA URE CO2-CP γ-GT
Lipids: T-CHO TG HDL-C LDL-C
Cardiac function: CK CK-MB LDH
Immune proteins: IGA IGG IGM C3
Others: GLU HGB AMS
Click here for more information !!!
