Home /Products/Blood Biochemistry Analyzer/YES BIOBASE Clinical Analytical Instruments Automatic Biochemistry Analyzer Blood Test Analyzer

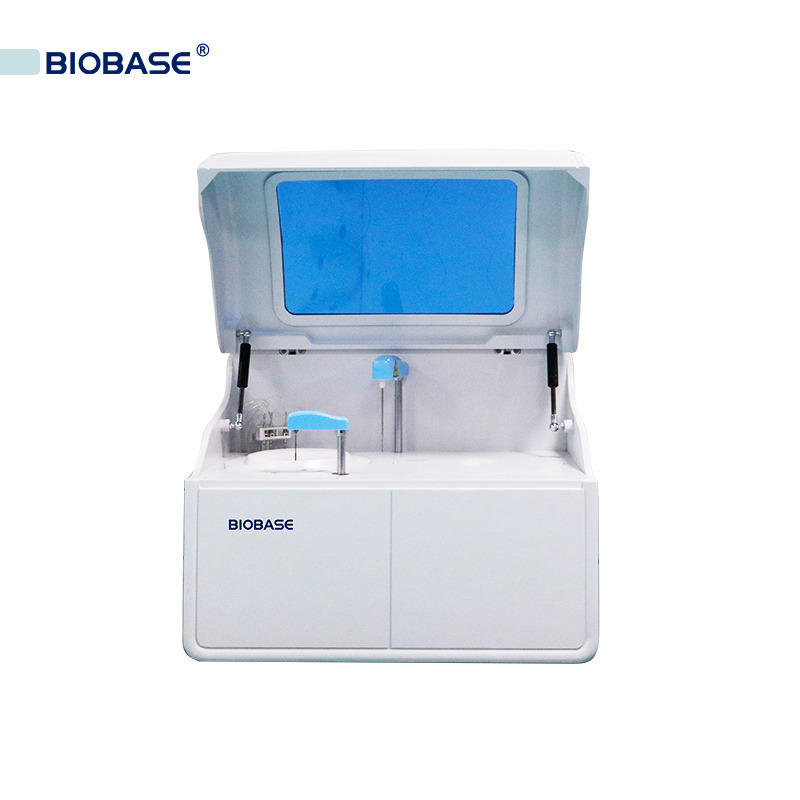

YES BIOBASE Clinical Analytical Instruments Automatic Biochemistry Analyzer Blood Test Analyzer

1.0 Units
MOQ
YES BIOBASE Clinical Analytical Instruments Automatic Biochemistry Analyzer Blood Test Analyzer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Biochemical Analysis System
Model Number: BK-200
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
Product Name: Chemistry Analyzer
Throughput: 200 Tests/hour
Sample Positions: 37 Sample Positions
Reagent Position: 28 Reagent Positions
Probe Washing: Automatic Washing Interior And Exterior
Reagent Cooling: Refrigerated Tray With Independent Switch
Cuvettes: 48 Reusable Cuvettes, Optical Length 6mm
STAT Function: YES
Wavelength: 340, 405, 450, 510, 546, 578, 630, 700nm
Water Consumption: Deionized Water:<5L/H
Basic Infomation
Model Number: BK-200
Payment & Shipping Terms
Product Description
Products Description


Auto Chemistry Analyzer

The biochemical analyzer is an instrument that uses the principle of photoelectric colorimetry to measure a specific chemical composition in body fluids. Because of its fast measurement speed, high accuracy, and small consumption of reagents, it has been widely used in hospitals and epidemic prevention stations at all levels.
Features:

①. 37 Sample positions.

②. 28 Reagent positions.

③. 48 Reaction cuvettes.

④. 200 Tests per hour.

⑤. Probe anti-collision function, liquid level dectection function.
Product Paramenters
Model
BK-200mini (NEW BK-200)
Overall
Performance
Throughput
200 Tests/hour
Analysis Method
End-point, Fixed-time, Rate(Kinetic)
Sample & Reagent System
Sample Positions
37 sample positions
Reagent Position
28 reagent positions
Probe Washing
Automatic washing interior and exterior
Reagent Cooling
Refrigerated tray with independent switch
Reaction System

Temperature Control
37+0.1℃, real-time monitoring
Cuvettes
48 reusable cuvettes, optical length 6mm
Mixer Probe
Independent stirring
Washing
Automatic cuvettes washing
STAT function
YES
Optical System
Light Source
6V/10W halogen lamp
Spectrophotometry
Post-spectral spectrophotometry
Wavelength
340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance
0~3.0Abs
Calibration & QC
Calibration
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P
Quality Control
Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot (2D)
Data Management
Software
Windows 7/8/10, 32or 64bit
LIS System
Bi-direction, support HL7 protocol
Interface
LAN port access
Printer
External, multiple reporting mode available
Working Conditions
Power Supply
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
Temperature
10～30℃
Water Consumption
Deionized water:＜5L/H
Humidity
30-80%
Size & Weight
External Size (W*D*H)
625*425*460mm
Net Weight
36kg
Package Size (W*D*H)
721*531*855mm
Gross Weight
55kg


Clinical Chemistry Reagents

Blood Gas Electrolyte Items: Cl, Ca, IP, Mg, CO2, Na, K, Cu, Fe, Zn
Lipid Profile: CHO, TG, HDL-C, LDL-C, ApoA1, ApoB, Lpa, HCY, PLIP, APOE, ApoA2, ApoC2
Liver Function: ALP, γ-GT, AST, ALT, TP, ALB, CHE, TBA, AFU, ADA, 5'-NT, MAO ,AFP, AMM, LAP, TBIL,TBIL, DBIL, DBIL, ALC, GLDH, AAT
Myocardium Zymogram Items: LDH, α-HBDH, CK-MB, CK, MB, ACE, LDHI, TNI, IMA
Kidney Function Items: UREA, UA, CREA, MALB, CYS-C, BMG, NAG, UTP, α1-MG, RBP
Glycometabolism Items: GLU, GLU, GSP, HbA1c, D3H, LAC, HbA1c
Pancreas Items: α-AMY, LPS
Pepsinogen Items: PGI, PGII
Rheumatism Items: RF
Hemagglutination inspection items: Fb, Fn
Special Protein Items: ASO, CRP, PALB, TRF, G6PD, DD, C3, C4, IgA, IgG, IgM, CRP, Fet, UIBC, IgE
Calibrator & Quality Control: Composite Standard and Quality Control serum. Other individual Standard and Quality Control serum.
Recommend Products
Packaging & Shipping

1.PACKING

All the products will be packed firmly in standard wooden case/ carton to make sure that the product won't be damaged during the delivery.

2.SHIPPING

Usually, the delivery time is about 10 to 15 days. If the product is a hot-selling product and there is no stock, it may be longer, but we will do our best to make our customers receive the product as soon as possible. If you want to know more information about inventory, please contact me.
Buyer feedback
Company Profile
International Exhibition
After Sales
FAQ
1.How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
2.How about Biobase delivery time?
Within 7-15 workdays after receiving deposit.
3.How about Biobase validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant
4.What's thr shipping port?
FOB to QingDao Port,China(also can ship according to customers' request.
5.How about the package?
Bubble film +cotton+standard export wooden case.
