Orich radiology medical x ray machine
|
Generaor |
Collimator |
||
|
Frequency |
200KHz+ |
Type |
Manual ( with location light ) |
|
kV Range |
40-150kV |
Motorized Adjustment Radiographic Table |
|
|
mA Range |
10-630mA |
SID |
≤115cm |
|
mAs Range |
0.1-630mAs |
Tabletop |
200(L)×74(W)×66(H)cm |
|
Power |
50kW |
Transverse Travel |
±10cm |
|
X-ray Tube |
Longitudinal Travel |
±60cm |
|
|
Focal Spot |
0.6/1.2mm |
Grid |
|
|
Heat Capacity |
150KHU |
r |
10:1 |
|
Max. kV |
150Kv |
f |
100cm |
|
Max. mAs |
370/760mA |
N |
40 Line/cm |
|
Tube Rotation |
±180° |
Wall Stand |
Optional |
|
Travel Range |
120cm |
Ion Chamber |
Optional |

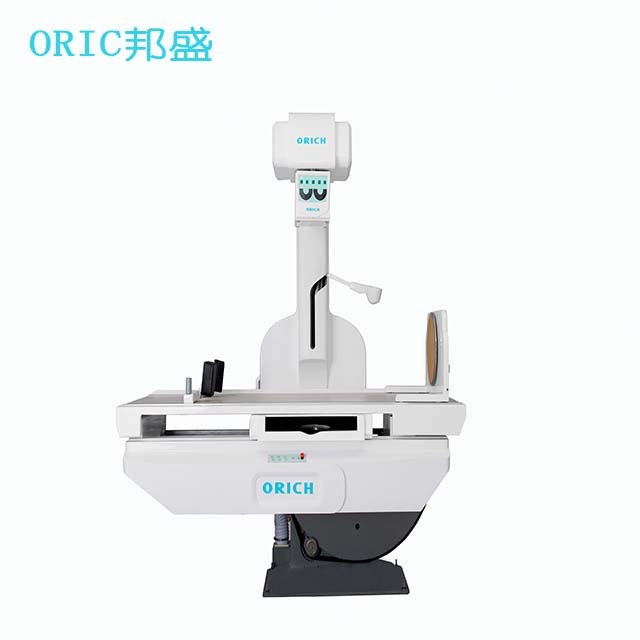

DF-323H is gastrointestinal x ray machine. It makes a tangible difference in any practice, letting you perform fluoroscopy and radiography examinations with ease and efficiency.
Two configurations:
1. Export generator with 1 million pixels CCD camera.
2. Orich generator with 0.4 million pixels CCD camera.
Feature:
l Compact island design of the diagnostic table perfectly realized diversified diagnoses, and can satisfy the special requirements of the interventional therapy.
l 740mm moving distance of the x-ray tube, adequately satisfies different diagnostic requirements.
l -25°tilting function is convenient to control contrast.
l State-of-the-art design fully improves the safety and comfort.
Best sale RF x ray system for Tbilish, Georgia
Standard export package: wooden case
Good package to protect machine from damp, mildew and broken.
Shipping:
It's available to ship the goods by sea, air and train, depends on customers' request.
Best sale RF x ray system for Tbilish, Georgia
Installation:
Oversea engineers are available to intsall the machines on site.
Technical training:
1. Professional English-speaking engineer can provide training on spot.
2. Professional English-speaking engineer are available to provide training in the factory.
3. Remote instruction by tools like PC, mobile phone etc are available.
Warranty:
Normally one year, it can prolong according to customers' request.
Best sale RF x ray system for Tbilish, Georgia
1. ORICH medical equipment(Tianjin) co.,ltd
ORICH Medical is the Sino-US joint venture by and between Tianjin Pharmaceutical Holdings Ltd and US Full State Group. It is a high-tech enterprise specializes in R&D and production of diagnostic radiology products.
We has gotten the quality system QSR820, ISO9001, ISO13485, YY/T0287 and our product has gotten certificates, like CE(EU), GOST(Russia), and certificate, etc.
2. Exhibitions
We have attended main exhibitions every year:
FIME, MEDICA, ARABA HEALTH, AFRICA HEALTH, CMEF etc.
Pls check our website, we have analog x ray machine, digital x ray machine, gastrointestinal x ray machine, c-arm, mobile x ray machine etc. If you have any interests on any machine, pls feel free to contact with us!
www.orich.com.cn
CE Certificate medical device for sale
DF-323H-1 fluoroscopy and radiography x ray machine
1 630mA x ray machine
2 medical x ray machine
3 medical x ray equipment
4 x ray machine
5 fluoroscopy and radiography x ray machine
Parameter of fluoroscopy and radiography x ray machine:
1 Generator: Supplier: CPI; Item No: INDICO 100
Frequency: 200kHz
Voltage: 150kV
Current: 630mA
Use the global best frequency conversion technology, the high frequency 200kHz insures the output waves of high voltage smooth.
Automatic program radiography(APR), 768 radiographic conditions, can set and save radiographic conditions for the especial requirements.
Short time exposure, easy to acquire instantaneous images.
2 X-ray tube: Supplier: Toshiba; Item No: E7252X
|
Supplier: Toshiba; Item No:E7252X |
|
|
Voltage: 150kv |
|
|
Focus:0.6/1.2mm |
|
|
Heatcapacity:300KHU |
|
High kV, small focus, satisfies all the requirements of radiography, optimizing image.
3 Diagnostic table:
Table rotating range:-25°-0°-+90°
Table size: 2100mm×600mm
Compact island design of the diagnostic table perfectly realizes the diversified diagnoses, and can satisfy the especial requirements of the intervention therapy.
740mm longitudinal stroke of the X-ray tube,adequately satisfy different diagnostic requirements.
Humanity design fully improves the safety and comfort.
-25°tilting function is convenient to control barium meal.
4 image system: two schemes are available
Scheme A:
400,000 pixels CCD camera
Scheme B:
1,000,000 pixels CCD camera
System invariable DC outputs, fits for large power,high kV radiography and short time instant radiography, optimizing images.
Advanced special CCD, 40 0000 pixels, provides sharp images of the highest quality, improving the excelent diagnostic results.
Brief description of the fluoroscopy and radiography x ray machine:
1 Use the global best frequency conversion technology. The high frequency 200kHz insures the output waves of high voltage smooth.
2 Automatic program radiography(APR), 768 radiographic conditions, can set and save radiographic conditions for the special requirements.
3 Short time exposure, easy to acquire instantaneous image
