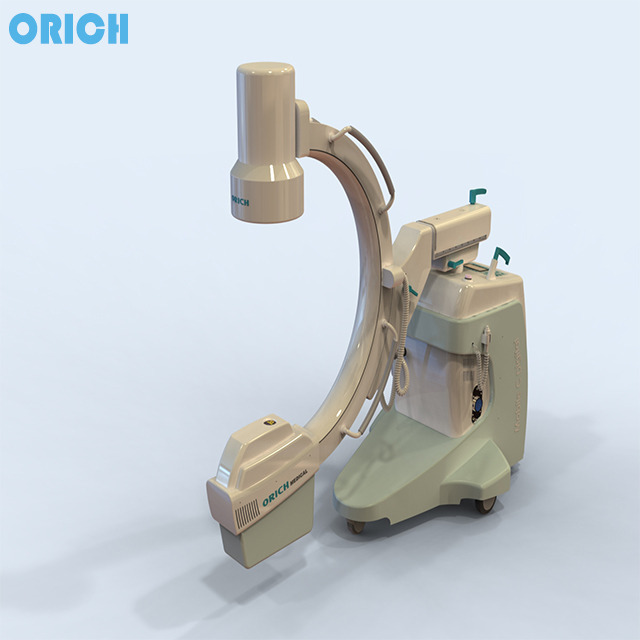

Orthopedic Fluoroscopy Machine High Frequency Digital C-arm X Ray Machine

1.Generator:  Item No:HK501-C

Power: Voltage: 3 Phase,220V; Frequency: 50Hz±1Hz

1.Generator:  Item No:HK501-C

Power: Voltage: 3 Phase,220V; Frequency: 50Hz±1Hz

Frequency:       40kHz Instant Maximum Power: 5kW(100kV , 50mA)

Fluoroscopy :   Pulse Fluoroscopy: 0.1mA-25mA,40kV-120kV

                           Continuous Fluoroscopy: 0.1mA-5mA, 40kV-120kV

Radiography :  40kV-120kV, step adjustment

                            23mA-100mA, step adjustment

                           Exposure Time:0.01-4s, step adjustment

2. x-ray tube :   Item No: E-40R HF, Rotating anode,3000rpm

                           Voltage:  120KV

                           Focus: 0.3/0.6mm

                           Heat capacity : 600KJ

3. C-arm:     YDZ-1 :  Film distance: 1000mm, error±10mm

                      C-arm vertical moving up and down:400mm,error±10mm

                      C-arm horizontal moving left and right :±12.5°, error ±2°

                      C-arm rotating around horizontal support: ≥ ±180°, error ±2°

4. Collimator :  DS-3

5. Image system :  One million pixels CCD camera

                                   image intensifier:  9''

                                   19'' monitor

                                   DSA digital processing system & workstation

   Medical equipment digital c arm radiography x ray machine

ORICH MEDICAL EQUIPMENT(TIANJIN) CO.,LTD

1.Product Technology Parameter:

Medical equipment digital c arm radiography x ray machine

1)Technology Parameter

2)Product Features

1)5kw, High Frequency, 1 Million Pixel CCD Camera C Arm X Ray Machine

2)Light and handy design allows easy mobilization and convenient operation;

3)Rocker arm can be self-balanced, easy for moving, operation and control;

4)Possess double control radiographic function, safety and efficiency are both taken into consideration;

5)This mobile DR possesses the advanced panel detecting technology;

6)Fast and high quality imaging.

3)Product Pictures

2.Company Introduction:

• ORICH MEDICAL EQUIPMENT(TIANJIN) CO.,LTD,a Sino-US venture by and between Tianjin Pharmaceutical Holdings and US Full State Group.We specializ in R&D of Medical X ray machine, our products include basix disgnostic x ray machinet, high-frequency digital photography system, mobile x ray equipment, panaramic and digital dental, mammography x ray machine.



Medical equipment digital c arm radiography x ray machine

1)Group Office & Factory Workshop

2)FAE Term

3)ISO9001,ISO13485,CE Certificate

4)Only One Radioactive Manufacturer Passed Test In China.

3.Exhibition

Global Medical Fairs We took Part in:

1)FIME(USA)

2)RSNA(USA)

3)MEDICA(GERMANY)

4)ARAB HEALTH(DUBAI)

5)CEMF(CHINA)

4.Our Service.

Medical equipment digital c arm radiography x ray machine

1)Product Training To Our Clients By Our Technical Engineer In Our Factory.

2)Our Engineers Overseas Training And Installing.
