Home /Products/C Arm Fluoroscopy Machine/Metal C-arm Fluoroscopy Machine For Hospital Imaging Equipment C-arm Machine

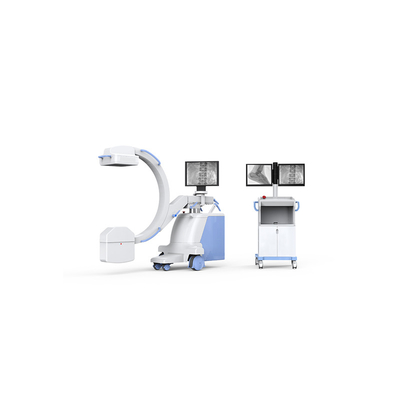

Metal C-arm Fluoroscopy Machine For Hospital Imaging Equipment C-arm Machine

1.0 Sets
MOQ
Metal C-arm Fluoroscopy Machine For Hospital Imaging Equipment C-arm Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YHX118F
Power Source: Electrical
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal, Plastic, Steel
Shelf Life: 1 Year
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Focus: 0.3/1.5mm
Anode Thermal Capacity: 1.235kJ
Tube Thermal Capacity: 1.3650kJ
Power Output: 5kW
Inverter Frequency: 110kHz
Tube Voltage: 40~120kV
Tube Current: 0.3~4mA
Humidity: 30%-75%
Atmospheric Pressure: 700hpa-1060 Hpa
Basic Infomation
Certification: ce
Model Number: YHX118F
Payment & Shipping Terms
Product Description
Product Description
Features 1)Adapted the most-advanced dynamic FPD with the big field and high resolution, high dynamic range, lowest noise and No distortion as well as the smart and compact Smart and compact design for easy move of the machine and saving the space; 2)9*9 inch effective filed of the flat panel detector meeting imaging size for all of the general anatomy during fluoroscopy; 3)Professional Image processing software has the unique & own-developed software for Rapid Dynamic image processing and viewing called RCDPS, multiple resolutions to analyze images and image enhancing technology, specialized image processing function for different anatomy to meet the accurate image requirement of the customers; 4)Optional grayscale LCD with high resolution, ensure excellent image quality. 5)DR detector is connected to Gigabit Ethernet, so it’s safe and swift to do image acquisition. Adopting international Dicom3.0 standard, it’s convenient to connect PACS system, transmit and print. 6)Independent R&D, high power combined high frequency high voltage X-ray source, it realize high frequency pulse fluoroscopy with low skin dose. 7)With human graphical operation interface, true color LCD touch screen, and digital intelligent control system, the operation is more convenient. 8)Appling different photographic parameters according to the human characteristics, such as multi-site, multi-position, multi-body shape, adult and children etc., the parameters can be modified and stored at will, which makes the operation more convenient. 9)It is designed with Automatic brightness tracking function. 10)With multiple automatic protection features and fault tips, it ensures the safety during operation process. And it is easier to maintain. 11)The self-designed flexible C-arm main frame is applicable to all kinds of surgery.
Specification
Digital Image System
Flat panel detector
Option 1:
THALES Pixium 2121S
Field
9”*9” (21cm * 21cm)
Dynamic Range
16 bits
Scintillating medium type
cesium iodide （A-Si）
Pixel matrix
1344×1344
Pixel size
154μm
Limited spatial resolution
3.2Lp/mm
Option 2:
Chinese made detector
Field
 9”*9” (21cm * 21cm)
Dynamic Range
 16 bits
Scintillating medium type
cesium iodide （A-Si）
Pixel matrix
 1024×1024
Pixel size
205μm
Limited spatial resolution
2.5Lp/mm
2.2 Monitor: 19" 1M Gray Scale Medical Use LCD monitor 2.3 Digital Image processing System 2.3.1 Register：Register save, case history taking, work-list 2.3.2 Image acquisition ：Image acquisition , recording, reset, Mirror Horizontally, Mirror Vertically, adjusting window, Magnifier, negative image, Open the silhouette, edge enhancement, noise reduction 2.3.3 Image Processing: 1/2/3/4/9 image window showing or slip sharpen, horizontal/vertical mirror image, measurement, remark, 2.3.4 Report Editing: Save, preview , Experts template 2.3.5 Workstation software : lossless data storage , multi-image window display , W/L image real-time adjustment, gray scale transformation, interest area balanced ,GAMA revise , overturn, noise reduction ,enhance ,smooth , sharpening, compression, amplification, measure, marks, report template of both image and text editing, Dicom 3.0 interface for image transferring and printing, experts send, Dicom image printing, video replying, copying, worklist registration, etc 2.3.6 Dicom functions: Dicom3.0 interface 2.4 Image sharpness index 2.4.1 gray level: ≥ 17 level 2.4.2 lines of resolution: ≥ 2.5LP/mm
3. Mechanical parts
3.1 Forward and Backward Movement: 200mm, 3.2 Rotate around Horizontal Axis: ±180° 3.3 Revolution around
Vertical Axis : ±15°° 3.4 SID: 1000 mm 3.5 C arm opening: 800 mm 3.6 C arm arc depth: 660 mm 3.7 Slip on orbit: ≥±135° 3.8
Ascending & Descending Range of Pillar ≥400mm 3.9 Direction wheel 360°rotation, main wheel ±90°rotation 3.10 Have electric
auxiliary support arm 3.11 Counter-balance design for safety move and operation;
