Name: Portable X-ray Machine Digital Fluoroscopy C-arm Hospital YJ-3310A With HF And HV Generator C-arm
Brand: Portable X-ray Machine Digital Fluoroscopy C-arm Hospital YJ-3310A With HF And HV Generator C-arm
SKU: YJ-3310A
Price: 29 USD
Availability: InStock
Rating: 4.8 (189 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: YJ-3310A

Properties: Hospital

Type: Optical Imaging

Instrument Classification: Class III

Warranty: 1 Year, 12 Months

After-sale Service: Online Technical Support

Product Name: C-arm X-Ray

Application: Hospital

Certificate: CE ISO

Accessories-Dual Syringe: Spikes (pipette)

Material: Stainless Steel

Type Of Machine: C-arm X-Ray Machine

Origin: Made

Basic Infomation

Certification: CE ISO

Model Number: YJ-3310A

Payment & Shipping Terms

Product Description

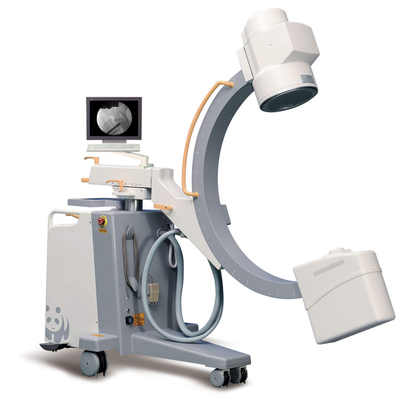

Portable Digital Fluoroscopy C-arm X-ray Medical

Optional trolley workstation:

Application :

Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.

General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and

fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty .

I. Key features:

1With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.

2)10.4"LCD friendly interface control board:

easy operation

and can be rotated to

180°(L90°,R90°) Compared

with ordinary key board, our LCD display is

not easy to be

oxidized Besides, the

trouble will be displayed in

Chinese, which will improve the efficiency of fault diagnosis.

3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.

4)With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also

available.

5) Equipped with unique block line wheels, it can avoid accident when the machine moves.

6)Large free space in arc: the space can reach 800mm,which is convenient for operation.

7)9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.

8)CCD camera with rotation function:range of camera rotation:360°.

9)Original Korean linear slide rail can make the the movement of the machine flexibly.

10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.

Main specification
HF generator			110KV, 3.5KW , 40kHz / 120KV, 5KW , 40kHz
Fluoroscopy mode			Fluoroscopy mode40~110kv /120kv 0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~110kv /120kv 0,5-5mA Boost fluoroscopy 40~110kV /120kv 5~10mA; Photography 40~110kV /120kv 1~250mAs
X ray tube			Dual-focus fixed anode:0.6mm/1.5mm Dual-focus rotating anode:0.3mm/0.6mm Italy IMD Technology
Image intensifier			Japan Toshiba Brand
CCD camera			Japanese Watt Brand, 360° rotation
Image system			5 Degree recursive Noise Reduction Frame freezing Thousands of image data storage Image conversing and rotating Screen display with image comparison Support “one click” print,print the image report Equip with Dicom 3.0 network port Support Dicom 3.0 standard data export function
Mechanical motion specifications			Verticaltravel:0-400mm Horizontaltravel:0~200mm(electric for optional) Rotation about horizontal axis:±180° (electric for optional) Slipping along the circular arcrail (electric for optional)
C-arm dimension			Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm800mm1850mm Image system: 750mm530mm1680mm
Standard configuration			High resolution CCD camera:1set x-ray generator:1set 9” image intensifier:1set image processor:1set 24'' LCD high definition display 1 set

Packaging & Shipping

Others

Dimension: Two woodencases:

A) 252×93×174cm B) 90×80×140cm GW:500KG

Delivery time: about 10 days

Payment terms: T/T

Warranty time: one year

Shipping mode: By air or sea
