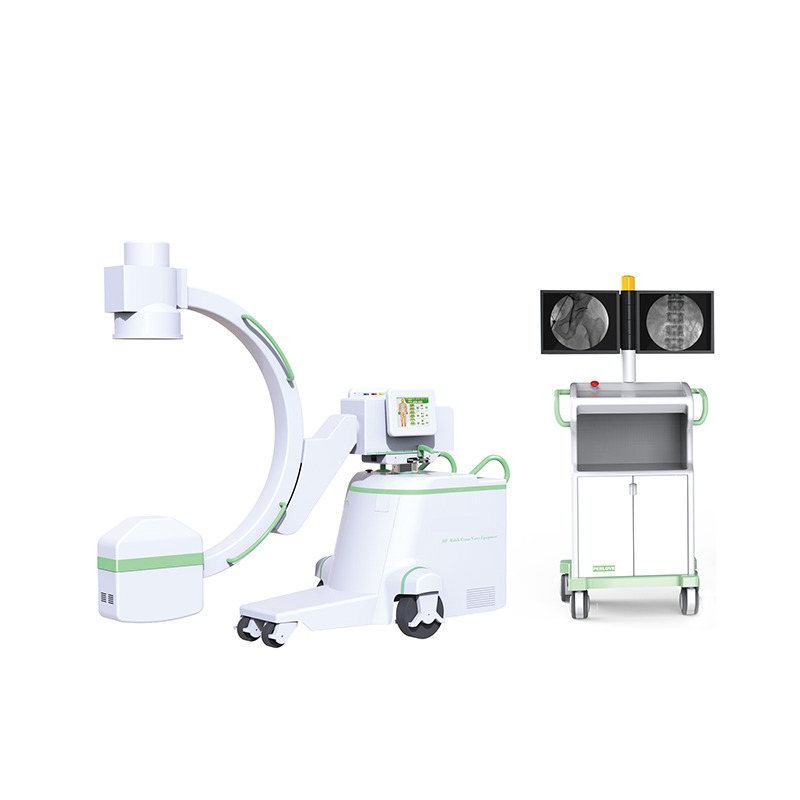

High Frequency Cheap Metal Camera Medical Operation C-arm Fluoroscopy Machine

1.0 Sets
MOQ
High Frequency Cheap Metal Camera Medical Operation C-arm Fluoroscopy Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YHX7000B
Power Source: Electrical
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal, Plastic, Steel
Shelf Life: 1 Year
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Output Power: 12kW
Inverter Frequency: 60kHz
Tube Anode: Rotating Type
Tube Focus: Dual, 0.3mm/0.6mm
Anode Heat Capacity: 212kJ (300kHu)
Thermal Heat Capacity: Max. 1000kJ (1300kHu)
Tube Voltage: 40kV-125kV, Continuous Adjustable
Tube Current: 0.3mA~4mA, Continuous Adjustable
Environment Temperature: 10°C-40°C
Relative Humidity: 30%-75%
Basic Infomation
Certification: ce
Model Number: YHX7000B
Payment & Shipping Terms
Product Description
Product Description
Features
1.High quality combined high-frequency and high-voltage X-ray generator can reduce X-ray radiation, save and efficient. 2.kV、mA automatically tracking function makes the brightness and sharpness of image in the best condition. 3.Real-time and continuous fluoroscopy mode reduces the X-ray dose and ensures superior image quality, which can meet the demand of high-precision and more complicated minimally invasive surgery, and also can effectively protect the security of medical staff and patients。 4.Adopting operating interface with human-graphic LCD touch- screen, which makes the operation easier and more convenient. 5.Hand controller design, easy to operate. 6.Toshiba brand imaging intensifier with reliable and stable quality, which ensures high definition image. 7.Ultra low light i mega pixel camera, provide sharpen image. 8.Standard configuration workstation with advanced image processing software, which makes the good image and easy to operate and diagnose. Dicom 3.0 interface can be connected with HIS, RIS and PACS in the hospital improve work efficiency. 9. Electric assist support arm design, safe use. 10.Beautiful out appearance design, compact structure and new frame design. 11.Realize digital radiography and fluoroscopy, makes the surgery more safe and convenient. 12.Popular in both domestic market and overseas market because of the good quality and design. 13. Four-dimensional electric motion control, precise positioning and flexibility; large rack design provides large viewing space, more comfortable operating environment; new design, new concept, bring extraordinary experience. Clinical Application Widely used in orthopedics, surgery, orthopedics, urology, spinal surgery, abdominal surgery, urology, pain, gastroenterology, gynecology and operating room.
Specification
Backward & forward movement
200mm, motorized
Rotation around horizontal axis
±180°, moterized
Rotation around vertical axis
±15°, manual (Others’ C-arm only ±12.5°, we have big range),
 SID
1060mm
 C-arm open
860mm
 C-arm depth
700mm (±5%)
 Slide along the obit
120°(+90°～－30°), motorized
Pillar up & down movement
400mm, motorized
2. Imaging System
1 Imaging intensifier: Canon 9inch 2 CCD Camera: Medical Ultra low-light CCD camera with 1mega pixel 3 LCD display：19 inch 1M grey scale LCD monitors 4 Imaging Acquisition and Processing Workstation 4.1 Register: register & save, medical records checking, Worklist 4.2 Acquisition: image collection, ready to video, reset, horizontal & vertical mirror, window modulation, magnifier, negative image, open silhouette, edge enhancement, recursive noise reduction. 4.3 Processing: four-window, nine-window, sharpening, mirror horizontally and vertically, image text, image length measurement. 4.4 Report: save, preview, expert template 4.5 Dicom function：Dicom browse, web service, video review, CD record, worklist
Company Profile
Nanjing Longcare Medical Equipment Co., Ltd is a very dynamic medical equipment company which located in an historic city Nanjing, China. With customer first, quality guarantee, excellent service, longcare medical provide best medical solutions to customers and win good reputation. All supplied product had been approved with ISO 13485, CE certificate.   Medical Equipment Industry related to human health, worthy of whole efforts on it. Longcare medical working principle: dedicated the whole lifetime to Provide the most cost-effective medical solutions to worldwide and Provide one-stop solution medical equipment procurement service.  Imaging equipment, Operating Room Equipment,  ICU equipment, Hospital furniture, Dental & E.N.T. Equipment, Laboratory Products, first-air devices, homecare equipment and medical consumable materials are our product range.
Our Advantages
Packing & Delivery
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery.
