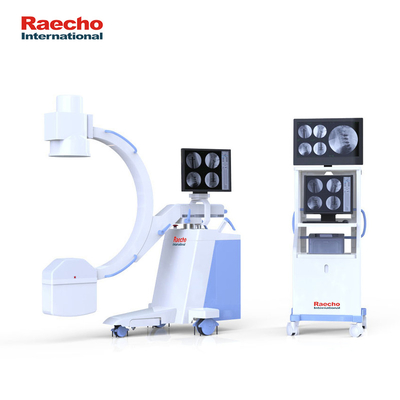

RLX-112C Metal Fluoroscopy Imaging Equipment Mobile Digital C-Arm X-ray Machine

1.0 Sets
MOQ
RLX-112C Metal Fluoroscopy Imaging Equipment Mobile Digital C-Arm X-ray Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: RLX-112C
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: None
Pulse Fluoroscopy: 0.1-25fps,continuously,adjustable
Image Intensifier: Image Made By TOSHIBA (9",6",4.5")
Tube Voltage,mAs: 40kv-120kv 20-100mA 1-180mAs
Tube Current: 0.3mA-4mA
Max Rated Capacity: 5.0kw
Monitor: High-definition,high-resolution,optional Specification
CCD Video Camera: Import CCD Vidicon With Ultra-low Luminosity
Ascending&Descend-ing Range Of Pillar: ≥400mm
Properties: Medical X-ray Equipments & Accessories
Basic Infomation
Certification: ce
Model Number: RLX-112C
Payment & Shipping Terms
Product Description
Product Description


Usage

Orthopaedics : osteopathy, diaplasis , nailing
Surgery: removing foreign body, implanting pace maker ,interventional therapy, partial radiography, local photography, and other work.

Features

1. Leading domestic level Mobile Surgical X-ray machine. Real continuously pulse fluoroscopy 25fps. Convenient connection with the Digital subtraction system.
2. One million pixels CCD camera makes the image more distinct.
3. World-class image processing technology software makes the image more distinct to make it more convenient for the doctors in the operation and diagnostic process. Standard DICOM interface makes it convenient to connect with the hospital information system.
4. The pulse fluoroscopy can obtain high –definition image from low dose to meet the requirement of the high-precision and high difficulty microinvasive operation.
5. Low radiation dose used can protect the doctor and patient.
6.Unique double foot brake controller design makes it convenient to control the instrument inside and outside the operation room. This design can also protect the health care professionals by reducing the opportunity to come into contact with the radiation.
7. Exclusive inside and outside monitor design makes it more convenient to observe the operation process either inside or outside the operation room. At the same time,this design can facilitate the outdoor teaching and the real-time observation of the surgical procedures.
8. Uniquely designed basement electric auxiliary supporting arm, ensuring safer use.
9. Specially designed portable controller, facilitating operation.
10. New-pattern frame design with a small and pleasing shape.
11. High-quality combined HF-HV X-ray generator, greatlyreducing the X-ray irradiation.
12. The fluoroscopic KV and MA automatic tracking function makes the image brightness and definition shift to the best condition automatically.
13. Toshiba image intensifier is employed, stable and reliable in quality and sound in image definition.
14. Dense X-ray grid is used, further improving the image definition.
Technical Parameters
Category
Item
Contents
Fluoroscopic Capacity
Max rated capacity
5.0kw
Automatic Fluoroscopy
Tube Voltage: 40kV-120kV adjust automatically
Tube Current: 0.3mA-4mA adjust automatically
Manual Fluoroscopy
Continuous Tube Voltage: 40kV-120kV
Continuous Tube Current: 0.3mA-4mA
Continuous Tube Voltage: 40kV-120kV
Continuous Tube Current: 4.1mA-30mA
Pulse Fluoroscopy
0.1-25fps,continuously,adjustable
Tube Voltage,mAs
40kv-120kv 20-100mA 1-180mAs
Plateholder Size
200mm×250mm(8"×10")or 250mm×300mm(10"×12")
X-ray Tube
X-ray Tube Special for High Frequency
Fixed anode Dual-focus : small focus: 0.3 .
Thermal capacity : 35KJ (47HU)
Inverter Frequency : 40KHz
Video System
Image Intensifier
Image made by TOSHIBA (9",6",4.5")
CCD Video camera
Import CCD Vidicon with ultra-low luminosity
Monitor
High-definition,high-resolution,optional specification
Structure
C-arm
Forward and Backward Movement : 200mm,
Revolution around Horizontal Axis : ±180°
Revolution around Vertical Axis : ±15°
Focus screen distance : 1000mm
C-arm opening : 800mm
C-arm arc depth : 640mm
Slip on orbit : 120°(+90°~ -30°)
Ascending&Descend-ing Range of Pillar
≥400mm
