Medical Diagnostic X-ray system
1. Brief introduction
High voltage (120KV) satisfies abdomen fluoroscopy and special fluoroscopy.
Small focus (0.8mm) effectively improves image resolution response.
Separate tube meets long time group examination.
Eight frame image storage can display and compare the saved images in the same screen at the same time.
Acheieve image acquirement, storage, negative image, mirror image, comparison image, etc.
Movement detection which combines with image intensification minimizes image dynamic artifact.
Dual video output, excellent image revivification reverts to image dynamic range, brightness and contrast.
Configure conveniently, and leave interface for optional work station.
2. Technical specification
|
Technical data of fluoroscopy X-ray system |
||||
|
Item No: DF-110A |
||||
|
Standard Configuration |
||||
|
No |
Item |
Technology Parameter |
Description |
|
|
1 |
Generator |
Tube current |
manual: 0.2~3mA |
High voltage,satisfies abdomen and special fluoroscopy. Configure conveniently, and leave interface for optional work station. |
|
automatic: 0.8±0.2mA |
||||
|
Tube voltage |
manual: 40~120KV |
|||
|
automatic: 40~120KV |
||||
|
Power: AC 220V |
||||
|
Fluoroscopy way: manual and automatic(IBS) |
||||
|
2 |
X-ray tube(Orich) |
Focus: 0.8mm |
High kV, small focus effectively improves image resolution response Separate tube meets long time group examination. |
|
|
3 |
Image system |
9" image intensifier |
Gray scale grade: 8 |
Eight-frame image storage, can display and compare the saved images in the same screen at the same time. Achieve image acquirement, storage, back-load image, mirror image, comparison image etc. Movement detection which combines with image intensification minimizes image dynamic artifact. Dual video output, excellent image revivification revert to image dynamic range, brightness and contrast. |
|
Resolution: min 1.2LP/mm |
||||
|
Denoise: 8 |
||||
|
Storage: 8 amplitude memory, comparison image |
||||
|
CCD camera |
pixel: 40 0000 |
|||
|
Monitor |
scan-line: horizontal:800, vertical:400 |
|||
|
4 |
Diagnostic stand |
Horizontal moving range: 260mm |
high quality -price rate. |
|
|
X-ray tube vertical moving range: 870~1730mm |
||||
|
Rotating range: -45°~+45° |
||||
|
5 |
Collimator |
Item No: DS-1 |
operate conveniently. |
|
3.The medical Fairs we take part in:
Medica, in Germany
Arab Health, in Dubai;
RSNA, in USA;
CMEF, in China;
FIME, in USA

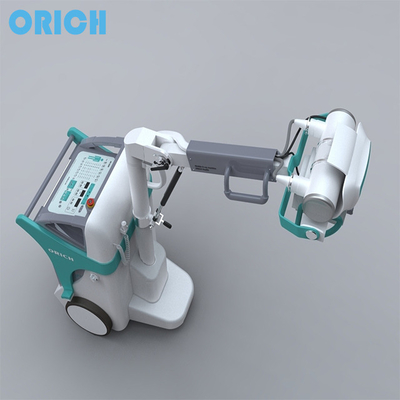

4. Photo gallery
